K-AN8 · Analogue and digital module

Analogue and digital. Straight onto CAN.

K-AN8 is the cost effective way to measure analogue and digital signals together, with outputs to switch relays and indicators on the rig. Everything lands on CAN for any logger, time synchronised with the network data.

  • 8 analogue
  • ±80 V to ±10 V
  • 10 kHz
  • ±0.0015%
  • 3 PWM in
  • 4 outputs

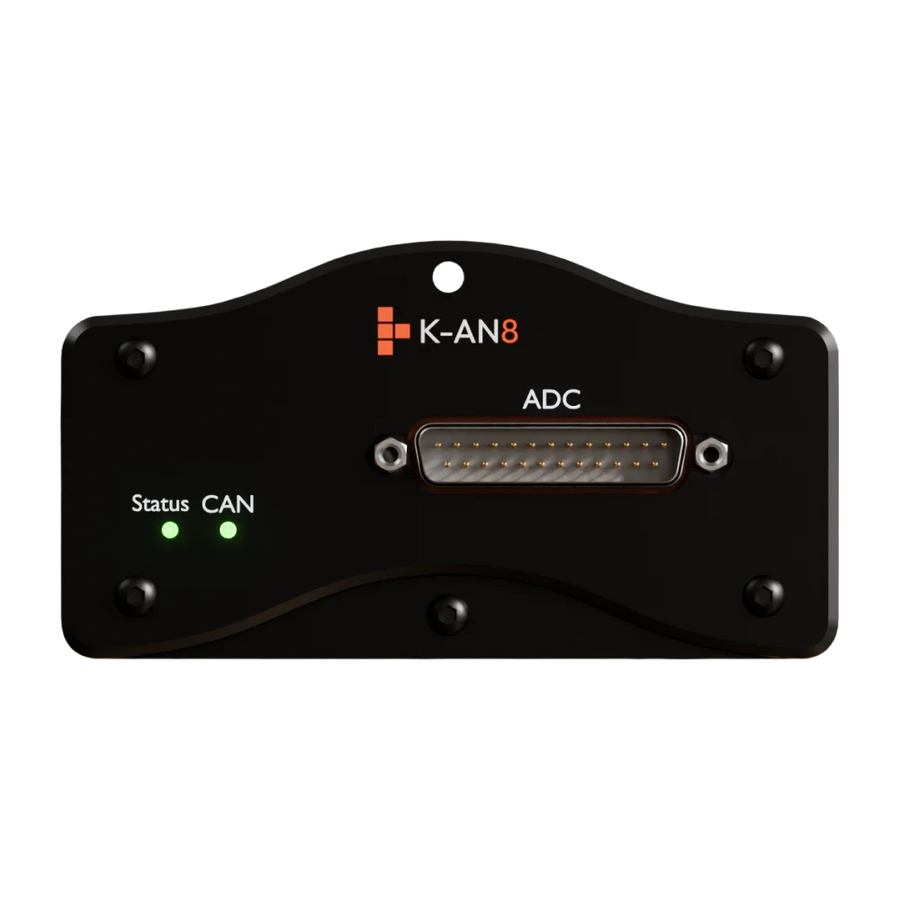

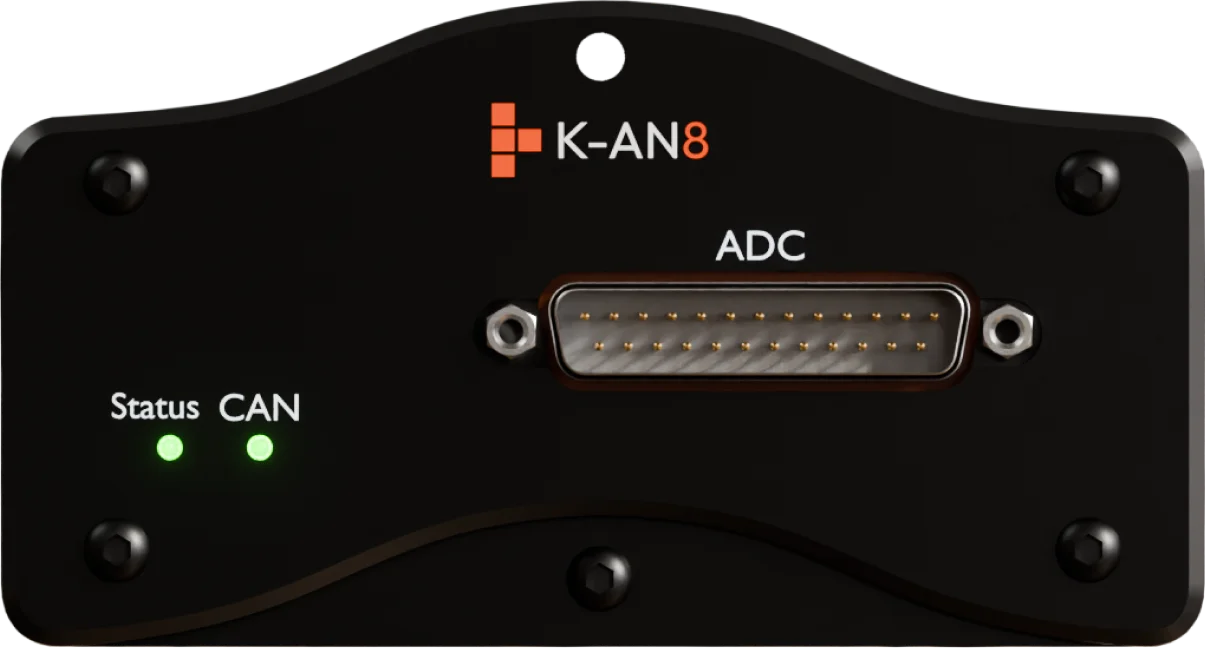

K-AN8 eight channel analogue to CAN module, stackable ABS enclosure
±0.0015% Analogue accuracy of full scale, on a 16 bit converter.
10 kHz Fastest analogue sampling, on two channels.
±80 V to ±10 V Software switchable input ranges per channel.
+150 V Analogue channel over voltage protection from the rig.
Designed and tested in the United Kingdom Free UK delivery over £499, excluding bulk orders 12 month warranty Calibration certificates on demand

Measure and control, in one module

Eight analogue inputs, at the rate you need

Bipolar differential inputs at variable rates: all 8 at 1 kHz, 4 at 2 kHz or 2 at 10 kHz, on software switchable ranges from ±80 V to ±10 V.

AI 01 AI 02 AI 03 AI 04 AI 05 AI 06 AI 07 AI 08 + full scale − full scale ±80 V ±40 V ±20 V ±10 V software switchable range, per channel

PWM and digital, measured properly

Three inputs for frequency, counter or pulse measurement to 100 kHz, alongside the analogue channels and on the same CAN timeline.

threshold AI 01 · analogue in RLY 1 FAN relay state, logged on CAN RLY 1 closed

The same data, on the CAN timeline

Transmits standard CAN with a supplied DBC file, so any logger decodes it, REBEL, REXGEN or third party.

Outputs to switch the rig

Four open collector outputs switch relays and indicators from K-CAL logic, and the states are logged on CAN with the measurements.

Powers the sensors too

Regulated 5 V and 24 V outputs supply external sensors, up to 80 mA combined. Fewer boxes on the rig.

Configured once in K-CAL

Set ranges, rates and CAN IDs over the bus, watch the built in oscilloscope, export a DBC. Settings stored in the module even when unpowered.

Full specifications, including isolation, over voltage protection, CAN output and power, in the spec sheet below.

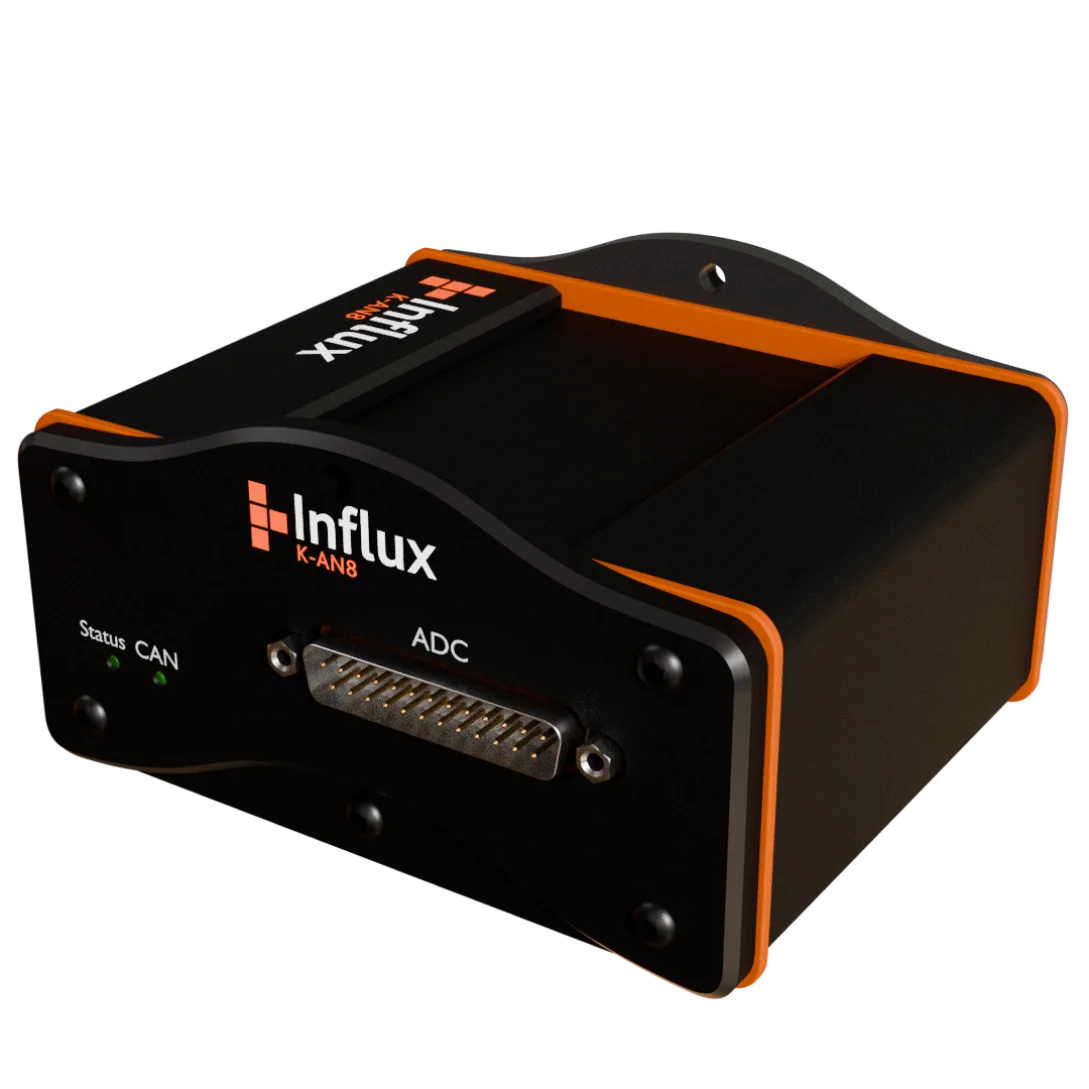

Under the skin

Built for value, specified like an instrument

Sixteen bit conversion, isolation, sensor supplies and deep sleep, at the price of a much simpler box.

Protected from the rig it measures

Galvanic isolation separates the enclosure, power, CAN and the analogue board, with over voltage protection to +150 V on the analogue channels. High input impedance keeps the module out of the circuit it is measuring.

  • 16 bit converter, ±0.0015% of full scale, input impedance above 4 MOhm
  • WakeOnCAN and power down deep sleep for unattended fleet installs
  • Runs from any 6 to 36 V DC supply, minus 40 to plus 85 degrees
  • IP65 stackable ABS enclosure, 115 by 105 mm

8

Analogue inputs, bipolar differential

3

PWM inputs, to 100 kHz

4

Outputs, open collector

10 kHz

Fastest, on two channels

01

Analogue connector

25 way D-Sub to the 8 differential inputs, with the supplied screw terminal system.

02

Digital and PWM

4 digital channels as inputs or outputs, 3 usable as frequency, counter or pulse inputs to 100 kHz.

03

Sensor supply

Regulated 5 V and 24 V outputs power external sensors, 80 mA combined.

04

CAN pair

Daisy chain in and out connectors link power and CAN through a stack of K-Series modules.

Applications

Where K-AN8 goes to work

Analogue and digital capture with switching outputs, straight onto CAN.

Not sure what you need?

Whether you need a single CAN bus data logger for bench testing or a fleet-scale deployment with cloud connectivity, our engineering team can help you find the right approach.

Specifications

The full picture

Sourced from the K-AN8 technical documentation. Download the full spec sheet below.

Download spec sheet ↓
Measurement and outputs
Analogue inputs 8 bipolar differential inputs, 16 bit, ±0.0015% of full scale, input impedance above 4 MOhm.
Sampling 1 kHz on all 8 channels, 2 kHz on 4 or 10 kHz on 2.
Voltage ranges Software switchable ±80 V, ±40 V, ±20 V or ±10 V.
Current Measured on the analogue inputs via a current clamp.
PWM and digital 4 digital channels configured as inputs or outputs, 3 usable as frequency, counter or pulse inputs to 100 kHz, minimum pulse 100 ns.
Outputs 4 open collector outputs to switch relays and indicators, 45 V and 10 mA max, states logged on CAN.
Sensor supply Regulated 5 V and 24 V outputs, 80 mA combined.
Protection
Over voltage Analogue channel protection to +150 V. Maximum ±75 V to analogue ground, ±150 V between inputs.
Isolation Galvanic isolation between enclosure, power, CAN bus and the analogue input board.
CAN and configuration
Output Measurement and output states transmitted periodically on CAN, time synchronised with vehicle network data.
Configuration K-CAL for Windows over the CAN bus. No PC port on the module; configuration needs a CAN interface or an Influx logger. Settings stored even when unpowered.
Integration DBC file supplied for decoding in any logger or tool.
Power 6 to 36 V DC. WakeOnCAN and power down deep sleep.
Physical and support
Enclosure Stackable, daisy chainable ABS. IP65. 115 × 105 mm, 56 mm high, 450 g.
Operating –40 °C to +85 °C, humidity to 90%.
SKU INF2210P package.
Support 12 month warranty. Calibration and certification on demand through K-CAL.

Configure your K-AN8

K-AN8
Instrumentation module

K-AN8 configurator

8-channel analog to CAN module with PWM, frequency and counter inputs. ±80V to ±10V ranges, ±0.0015% accuracy, engineering units on the bus.

In the box:

  • K-AN8 module (INF2210)
  • K-CAL software (INF1401)
  • 120Ω CAN terminator (INF4310)
  • Stacking cable (INF4305.0)
  • 25-way screw terminal block (INF4207)
  • 12 months warranty (INF6102)
£1,149.00
Quantity

Ordering more than 10 units? Ask about volume pricing

Request a quote

Frequently asked questions

Common questions

What is the difference between K-AN8 and K-BOX?

K-AN8 is the analogue and digital module; K-BOX adds 8 thermocouple inputs on top of the same analogue front end. If you need temperatures in the same box, choose K-BOX.

What can the outputs actually drive?

They are open collector outputs rated 45 V and 10 mA, made for switching relays, indicators and logic inputs. Drive bigger loads through a relay.

How do I configure it?

Over the CAN bus in K-CAL, using an Influx logger or a CAN to USB interface such as a Kvaser Leaf, available on request.

Can it measure current?

Yes, with a current clamp into the analogue inputs, within the ±80 V to ±10 V switchable ranges.

Can it power my sensors?

Yes. Regulated 5 V and 24 V outputs supply up to 80 mA combined for external sensors.

Does it work with other manufacturers' loggers?

Yes. K-AN8 transmits standard CAN and ships with a DBC file, so any logger or analysis tool decodes it.
