CAN fault evidence, vehicle motion and thermal monitoring on the same timeline. Built around REXGEN 2 in its IMU configuration, capturing CAN FD diagnostics alongside 6-axis IMU and 18 Hz GNSS data in one rugged device. Paired with K-TC thermocouples for traction motor, brake assembly and HVAC system thermal monitoring across rail vehicle durability programmes.
Recommended product
Rolling-stock data programmes combine CAN diagnostic and fault evidence with vehicle motion and position context. REXGEN 2 in its IMU configuration captures all three on one logger and one time base, in a rugged IP65-sealed enclosure rated -40C to +85C.
2x CAN FD at up to 8 Mbit/s plus integrated 6-axis IMU and 18 Hz GNSS. Capture rolling stock CAN diagnostics and ride quality acceleration on the same trace, time-aligned to one clock.
Pre and post-event recording with configurable triggers. Useful for incident investigation, brake event analysis and component fault root-cause work.
IP65 sealed, -40C to +85C operating range. Non-removable eMMC up to 16 GB eliminates the SD card vibration failures common across long rolling-stock duty cycles.
Add K-TC thermocouple modules for traction motor, brake assembly and HVAC system temperature monitoring during rail vehicle durability programmes. Up to 32 channels with plus or minus 1C accuracy and CAN bus isolation rated to 780V.
The challenge
Rolling stock data programmes have measurement demands that span fault diagnostics, ride quality and condition monitoring on the same asset.
Engineering teams need CAN diagnostics and ride quality acceleration on the same time base. Running separate loggers creates synchronisation problems and doubles the install footprint on the carriage.
Loggers installed on carriages stay in service for years between maintenance windows. Power-safe writes, vibration resistance, OTA configuration and remote firmware updates are not optional.
Traction motor, brake assembly and HVAC thermal monitoring runs continuously across rolling-stock duty cycles. Thermocouple modules need CAN-output integration with the vehicle logger and isolation suitable for the electrical environment on locomotives, trams and light rail vehicles.
Applications
From rolling-stock diagnostics to ride quality measurement and long-term condition monitoring, rail data acquisition has several distinct workflows that share the same hardware platform.

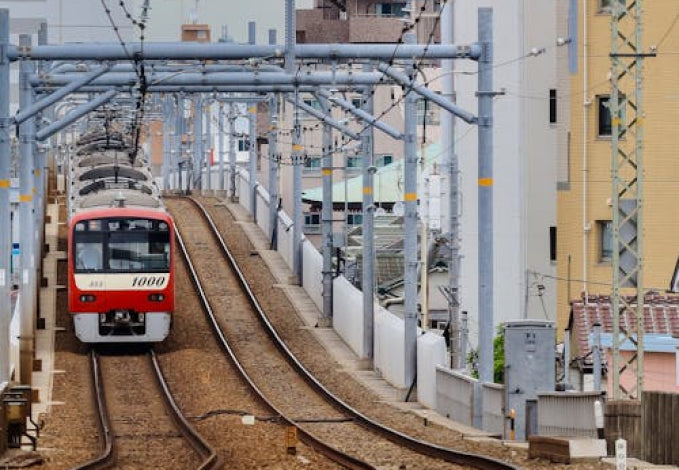

REXGEN 2 in its IMU configuration captures vehicle CAN traffic alongside ride quality acceleration and position. Pre and post-event capture around faults, brake events or impact thresholds for incident investigation and warranty work.

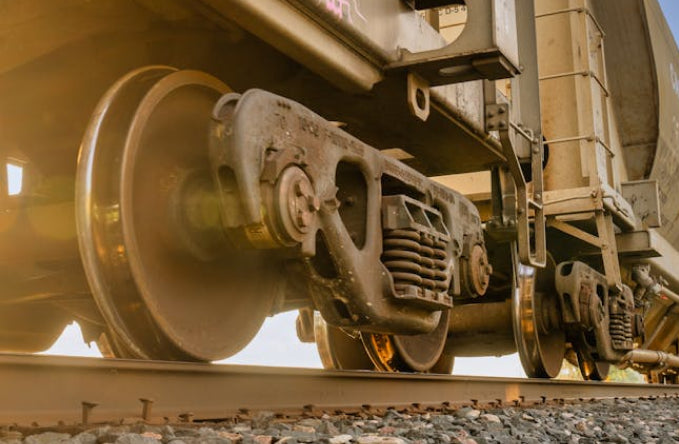

Pair REXGEN 2 with K-TC for K-type thermocouple measurement on traction motors, brake assemblies and HVAC systems during rail vehicle durability validation. Up to 32 thermocouple channels with plus or minus 1C accuracy. CAN bus isolation rated to 780V.

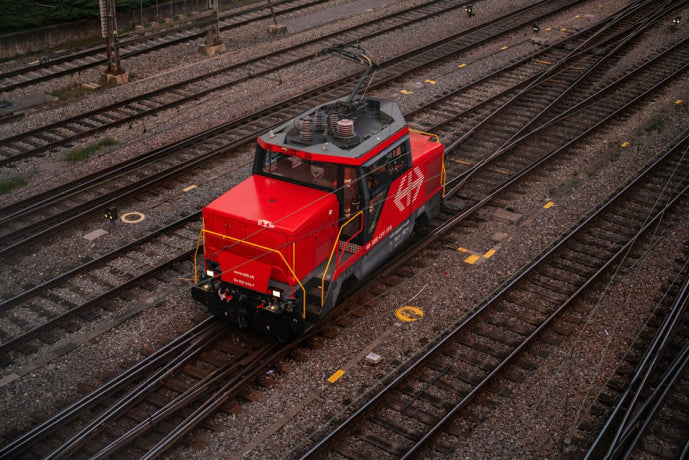

REXGEN Air for long-term permanent install where data needs to come off the asset without manual retrieval. Up to 4x CAN/CAN FD, OTA configuration and firmware across the rolling-stock fleet, non-removable eMMC up to 32 GB.
Recommended hardware
REXGEN 2 in its IMU configuration is the recommended starting point for rolling-stock multi-bus data acquisition with motion and position context. K-TC adds thermocouple measurement for traction motor, brake assembly and HVAC thermal monitoring. REXGEN Air handles permanent install with LTE cloud upload for long-term fleet condition monitoring.
2x CAN FD at up to 8 Mbit/s with optional integrated 6-axis IMU and 18 Hz GNSS. Pre and post-event capture, configurable triggers, WakeOnMovement, WakeOnCAN. IP65 sealed, -40C to +85C operating range. The IMU configuration is the recommended build for rolling-stock event evidence with motion and position context on the same timeline.
CAN-output K-type thermocouple measurement for traction motor, brake assembly and HVAC thermal monitoring on rail vehicles. Up to 32 thermocouple channels with plus or minus...
Permanent install with LTE CAT 1 or CAT 4 upload for long-term rolling-stock fleet condition monitoring. Up to 4x CAN/CAN FD, OTA configuration and firmware...
Our applications engineers work with rail OEMs, operators and condition monitoring teams. Describe the rolling stock, the data scope and the deployment scale.
What engineers say
By installing the REXGEN we were able to log simultaneously the vibrations of the ship with the internal accelerometer and the CAN bus. By connecting the datalogger to our diagnostic computer and leveraging the open REXLIBRARY of Influx Technology, we were able to make a custom diagnostic tool that automatically finds the diagnostic fault messages on the CAN bus and correlates it with the accelerometer data. Furthermore the data is exported to a time related database and visualized for easy interpretation by our engineers and the customer.
We have been using Influx Technology devices for the last five years now. They are undoubtedly the best in the market, and the service team is beyond expectations. Influx Technology never fails to amaze us with its innovative approach towards technology.
Software ecosystem
REXGEN 2 ships with REXDESK for logger configuration, CAN database import, IMU and GNSS setup and synchronised diagnostic and ride quality trace analysis. K-TC pairs with K-CAL for thermocouple calibration with a live oscilloscope view. Every Influx Technology data logger and instrumentation module ships with free companion software. No licence fees, no per-seat charges, no annual renewals.
Explore REXDESKLogger configuration, IMU and GNSS setup, diagnostic and thermal trace analysis
REBEL configuration, XCP/CCP setup, CAN and LIN trace analysis
Thermocouple and sensor calibration with live oscilloscope view
Diagnostics and firmware updates for K-Series modules
Why Influx Technology
Built, tested and supported from one site at the heart of UK automotive testing.
Our UK headquarters sit within one of Europe's leading vehicle test facilities. We develop and validate hardware in real test conditions.
Your enquiry is handled by the engineers who designed the hardware. No reseller layer, no third-party support desk.
Hardware design, firmware, desktop software and cloud platform all developed in-house. No third-party dependencies in the signal chain.
REXDESK, K-CAL and DIALOG are free with every hardware purchase. No per-seat charges, no annual renewals.
Frequently asked questions
REXGEN 2 in its IMU configuration combines 2x CAN FD logging at up to 8 Mbit/s, a 6-axis IMU and 18 Hz GNSS in one rugged device. Rolling-stock CAN diagnostics, vehicle motion and position log to the same trace, time-aligned to one clock. Pre and post-event capture handles fault and impact investigation across mainline, metro and tram applications.
REXGEN 2 is available in two configurations on one product page: the base CAN FD logger and the IMU build with integrated 6-axis IMU and 18 Hz GNSS. For rolling-stock event evidence with motion and position context, the IMU build is the recommended configuration. For diagnostic-only deployments the base configuration is available at a lower price point.
The K-TC module is a CAN-output K-type thermocouple system for high-temperature monitoring on rolling stock. Up to 32 channels with plus or minus 1C accuracy, supporting K, J and T thermocouple types. CAN bus isolation rated to 780V. K-TC outputs CAN messages that REXGEN 2 records alongside the CAN diagnostic bus, 6-axis IMU and 18 Hz GNSS data on the same time base. Common rail deployments cover brake disc, traction motor, gearbox and HVAC system temperatures.
REXGEN loggers support CAN, CAN FD, LIN and ISO 11783 networks. Rolling stock applications typically rely on CAN-based vehicle networks which all REXGEN devices handle natively, with PGN, signal and ID-level filtering configurable in REXDESK. CAN FD support at up to 8 Mbit/s covers next-generation rolling-stock TCMS networks.
REXGEN loggers support WakeOnCAN, WakeOnMovement and WakeOnDigitalInputs for unattended deployment on rolling stock that cycles in and out of service. Non-removable eMMC up to 32 GB on REXGEN Air supports extended logging windows between cloud uploads. Power-safe writes mean zero message loss on bad shutdowns.
Yes. REXGEN Air supports over-the-air configuration and firmware updates via LTE CAT 1 or CAT 4. This is particularly valuable for rolling-stock fleets where physical access to loggers requires depot time. The full fleet inventory, upload schedule and firmware version can be managed from one cloud platform.
Describe the rolling stock, the network architecture, the data scope and the thermal monitoring requirements. Our applications engineers will scope the right logger and instrumentation configuration for your programme.
