EV and battery validationPack, powertrain and CAN FD
An electrified driveline programme logging inverter and battery traffic across CAN and CAN FD, with XCP calibration on the same timebase.
REBEL CT CAN FD · Development logger
CAN, CAN FD and LIN, on one clock.

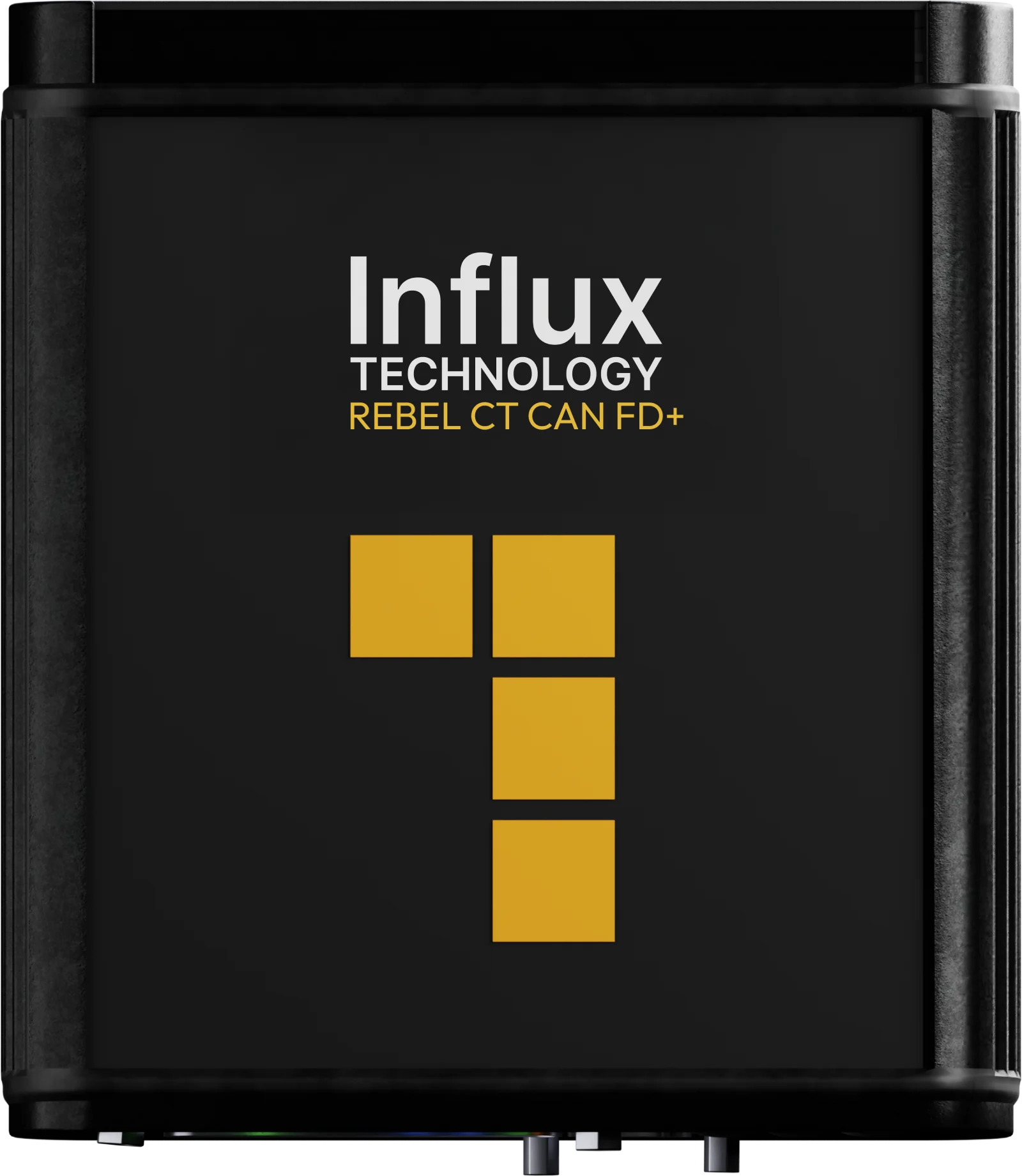

REBEL CT CAN FD logs two CAN 2.0, two CAN FD and two LIN buses on a single timeline, with diagnostics and gateway functionality running on the same device that records the bus. Built by the team behind REXGEN Pro.
2 + 2
Two CAN 2.0 and two CAN FD buses, ISO and non-ISO standard frames.
2
LIN channels, on the same synchronised timeline as the CAN traffic.
4
Analogue inputs, each independently calibratable, plus 3 digital I/O.
IP65
Rugged aluminium enclosure with a splash proof cover.
Designed and tested in the United Kingdom
Free UK delivery over £499, excluding bulk orders
12 month SLA included
Calibration on demand
How it works
Configure, fit, analyse
DIALOG Standard ships in the box, and the logger runs itself between visits.
01
Configure in DIALOG
Set networks, triggers and exports, then load the configuration. DIALOG Configurator is free with every logger.
02
Fit it and leave it
WakeOnCAN and WakeOnSignal bring it out of low power sleep, the battery backed clock keeps time, and the CAN gateway keeps bridging whilst it logs.
03
Analyse in DIALOG Standard
Included in the package: the live viewer, graphical analysis and the post analysis oscilloscope, exporting MDF4, BLF, MAT and CSV.
A trigger on one network starts capture across all of them, so cause and effect are already lined up when you open the file.
Every network, one timeline
CAN, CAN FD and LIN, correlated
Two CAN 2.0 and two CAN FD buses with two LIN channels, every frame stamped to one clock. When a DM1 fault fires on CAN, the CAN FD frame and the analogue reading around it are already lined up.
Built for CAN FD traffic
Logs CAN FD in ISO and non-ISO standard frames alongside classic CAN 2.0, so the higher payload buses on electrified platforms land in the same file as everything else.
Diagnostics on the recording device
XCP, CCP and UDS run on the same unit that records the bus, so calibration traffic and measurement land in one file.
Four calibrated analogue inputs
Each analogue channel is independently calibratable, for sensor measurement that stands up next to the network data.
Position and motion, when you need them
Upgrade options add an 18 Hz GNSS module with an external antenna socket, a 1 kHz three axis accelerometer, a 3D gyro, Wi-Fi and 4G LTE.
Configured and analysed in DIALOG
DIALOG Standard ships in the package: live viewer, graphical analysis and the post analysis oscilloscope. Module Analyser Lite handles UDS and ODX.
Full specifications, including networks, inputs, storage, power and IP65, in the spec sheet below.
Under the skin
Built for the vehicles that break loggers
IP65 aluminium, galvanic isolation, a battery backed clock and wake sources for every kind of test.
Rugged and unattended
The aluminium enclosure is IP65 rated with a splash proof cover over the card slot, and galvanic isolation keeps the rig out of the measurement. WakeOnCAN and WakeOnSignal bring the logger out of low power sleep the moment something happens.
- IP65 aluminium enclosure with splash proof SDXC cover
- Galvanic isolation on USB and enclosure
- WakeOnCAN, WakeOnSignal and a battery backed real time clock
- CAN 2.0 gateway whilst logging, stacks with K-TC, K-BOX and K-AN8
2 + 2
CAN 2.0 and CAN FD buses
2
LIN channels
128 GB
Extreme SDXC, 64 GB shipped
£1,899
Complete package
01
Network banks

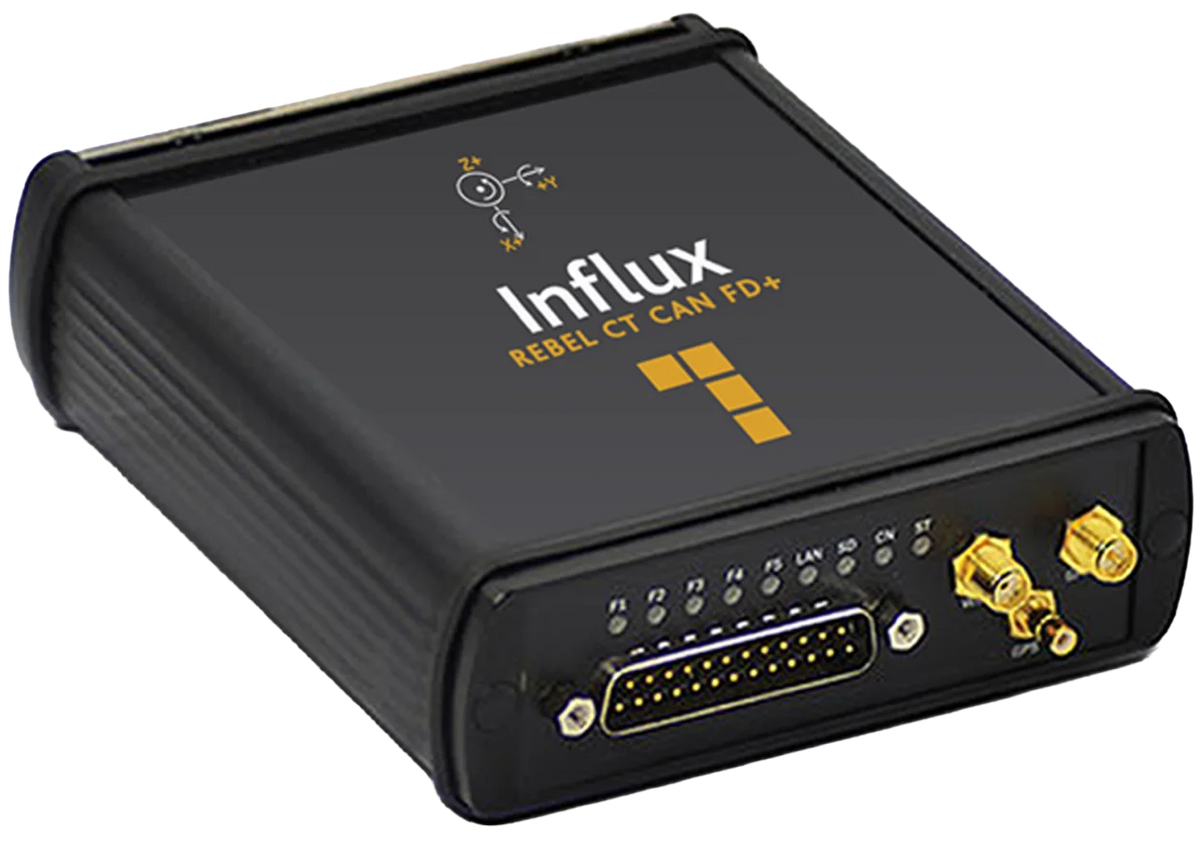

CAN, CAN FD and LIN break out through the multi connect cable to standard 9 way D-Subs.
02
Card slot
Extreme SDXC behind the splash proof flap, 64 GB shipped, 128 GB supported.
03
Antenna socket
External GNSS antenna connection for the optional positioning upgrade.
04
Stack interface
Stacks and daisy chains with the K-Series instrumentation range.
Applications
Where REBEL CT goes to work
EV and battery validation, body systems and workshop diagnostics, drawn from live programmes.
EV and battery validation
Body and comfort validationCAN, CAN FD and LIN in one file
A body systems programme logging LIN door and comfort traffic alongside the CAN FD backbone, with every frame on one clock.
Workshop diagnosticsGateway and UDS in one box
A workshop programme using REBEL CT as a CAN 2.0 gateway, running UDS routines and flash programming through Module Analyser.
Not sure what you need?
Whether you need a single CAN bus data logger for bench testing or a fleet-scale deployment with cloud connectivity, our engineering team can help you find the right approach.
Documentation
Set it up and start logging
Step by step guides on the Influx Technology docs, from first connection to pinouts and the full manual.
Specifications
The full picture
REBEL CT CAN FD package, INF2105.01P, £1,899. Sourced from the REBEL CT CAN FD documentation. Download the full spec sheet below.
Download spec sheet ↓Networks and protocols
CAN
2 CAN 2.0 and 2 CAN FD buses. CAN FD in ISO and non-ISO standard frames. Raw messages or signals via a CAN DBC.
LIN
2 LIN channels.
Protocols
OBD and UDS to ISO 14229, CCP, XCP on CAN and SAE J1939.
Gateway
CAN 2.0 gateway whilst logging.
Inputs and position
Analogue
4 analogue inputs, each independently calibratable. The multi connect cable breaks out the analogue and digital channels.
Digital
3 digital input and output channels.
GNSS
18 Hz GNSS module with an external antenna socket, available as an upgrade.
Motion
1 kHz three axis accelerometer and 3D gyro, available as upgrades.
Storage and power
Storage
Extreme SDXC card behind a splash proof flap, 64 GB shipped, 128 GB supported.
Clock
Battery backed real time clock.
Power and wake
Vehicle supply, low power sleep with WakeOnCAN and WakeOnSignal.
Connectivity
USB. Optional Wi-Fi and 4G LTE.
Physical and software
Enclosure
Rugged aluminium, IP65 rated with splash proof cover. Breakout to 9 way D-Sub. Stacks with the K-Series range.
Isolation
Galvanic isolation on USB and enclosure.
Software
Ships with DIALOG Standard and Module Analyser Lite. DIALOG Configurator is free with every logger.
Export
MDF4, BLF, MAT and CSV.
In the box
Logger, DIALOG Standard, Module Analyser Lite, multi connect breakout cable, USB cable, 64 GB Extreme SDXC card, 12 month SLA.
Support
12 month SLA included. Annual SLA thereafter, software 15% and hardware 8% of list.
Data logger
Share config
REBEL CT configurator

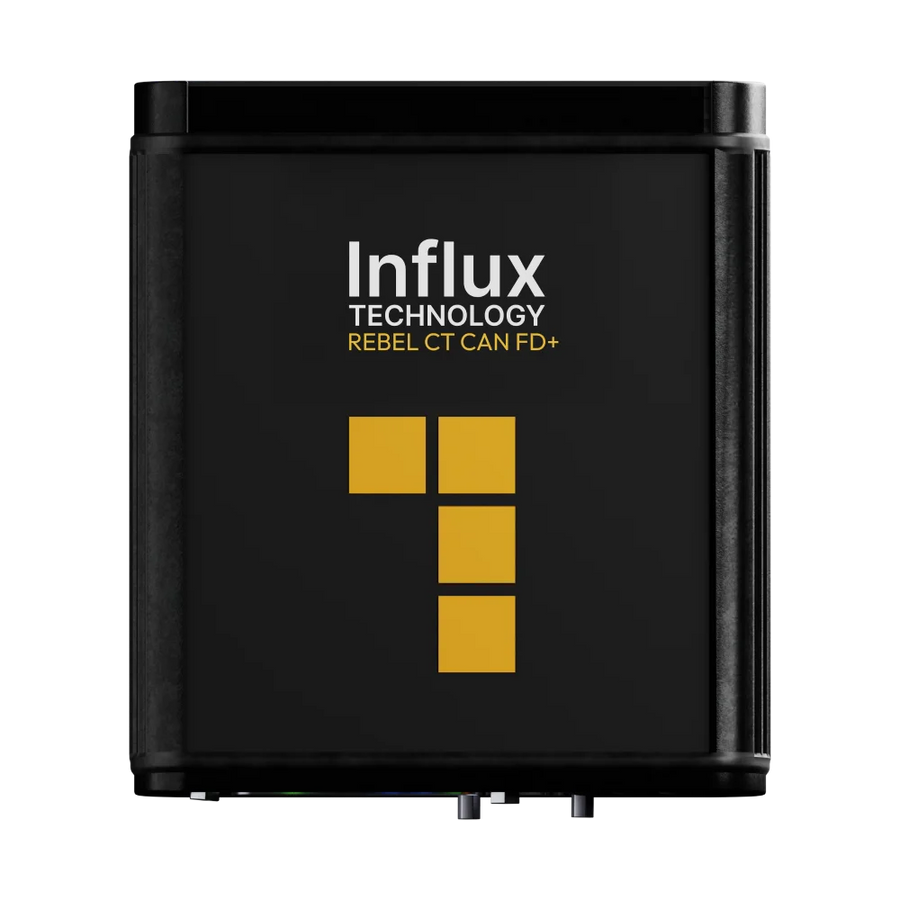

Rugged CAN data logger with 2x CAN and 2x CAN FD channels, UDS, XCP and J1939 support. IP65 aluminium housing, SD storage and wake on CAN.
In the box:
- REBEL CT logger CAN FD (INF2105.01)
- DIALOG Configurator licence (INF1101.1)
- Module Analyser Lite licence (INF1301)
- USB cable (INF4301)
- Multi-connect breakout cable (INF4204.1)
- 64GB SDXC card (INF5303)
- 12 months SLA (INF6102)
£1,899.00
Request a quote
Frequently asked questions
Common questions
What is in the box?
The logger, DIALOG Standard, Module Analyser Lite, the multi connect breakout cable, a USB cable, a preformatted 64 GB Extreme SDXC card and 12 months of SLA cover.
Which networks does it log?
Two CAN 2.0 buses, two CAN FD buses in ISO or non-ISO standard frames and two LIN channels, all on one synchronised timeline.
What software ships with it?
DIALOG Standard for live viewing and analysis and Module Analyser Lite for UDS and ODX, plus the free DIALOG Configurator. There is nothing extra to buy to start logging and analysing.
Is GNSS included?
No, it is an upgrade: an 18 Hz GNSS module with an external antenna socket, alongside optional accelerometer, gyro, Wi-Fi and 4G LTE. Ask for them at order.
Can it bridge buses while it records?
Yes. The CAN 2.0 gateway moves signals between buses whilst logging continues.
REBEL CT or REBEL LT?
The REBEL LT covers two CAN buses, K-Line and analogue from £1,249. Choose the CT for CAN FD, LIN and the IP65 metal enclosure.
