Fleet black boxA recorder in every vehicle
Fit one to each vehicle on the J1939 backbone and let FIFO loop recording keep the recent history without anyone touching it.

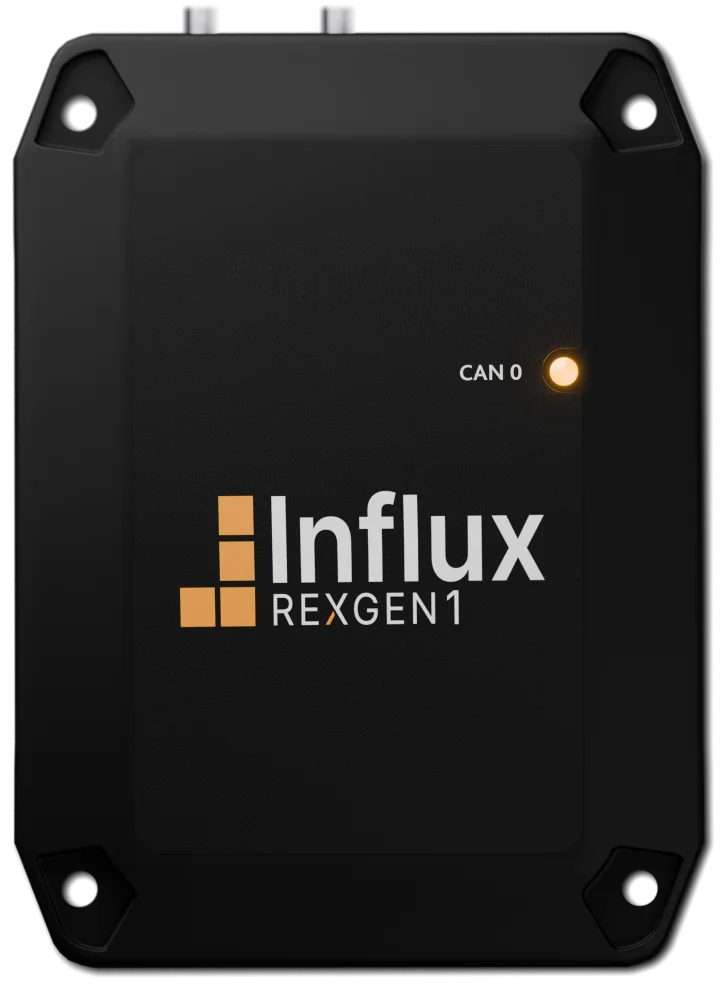

A vehicle black box for one CAN bus
One CAN channel recorded straight to 8 GB of soldered eMMC, loop recording like a black box once it is full, and a deep sleep that draws under 2 mA. Fit it, forget it, read it when it matters.
1× CAN
ISO 11898-1 up to 1 Mbit/s, raw CAN and SAE J1939, 20000 mps.
8 GB eMMC
Soldered storage with FIFO loop recording once it is full.
<2 mA sleep
Deep sleep on the vehicle battery with WakeOnCAN.
J2534
Doubles as a pass-thru CAN interface over micro USB 2.0.
Designed and tested in the United Kingdom
Free UK delivery over £499, excluding bulk orders
12 month warranty
Soldered eMMC, no SD card to lose
What makes it a black box
Asleep until the bus speaks
Deep sleep at under 2 mA on the vehicle battery, WakeOnCAN when traffic appears, then straight back down.
Full is never the end of the recording
Logs write straight to 8 GB of soldered eMMC. Once it is full, FIFO logic overwrites the oldest file first, so the most recent data always survives.
Record everything, or just the event
Trigger on a CAN ID, a parameter value or a DM1 counter, with advanced message filtering and cyclic logging.
A live interface when you need one
J2534 pass-thru over micro USB 2.0 streams CAN in real time to diagnostic tools and applications like SavvyCAN.
Open from the file format up
Free REXDESK exports to MDF4, CSV, MATLAB, ASC, BLF and TRC, with REXLIBRARY open libraries for your own tooling.
Built for the harsh end of the vehicle
IP65 in PC+ABS, -40 C to +85 C, 164 g with four mounting holes. Transceiver protected to ±58 V bus faults.
Full specifications, including power figures, protection and dimensions, in the spec sheet below.
Applications
Where REXGEN 1 goes to work
Single bus black box logging, event capture and live diagnostics.
Fleet black box
Intermittent faultsCatch the fault that never happens in the workshop
Leave it on the bus for weeks at under 2 mA. Trigger on the DM1 counter or a parameter value and the event is on the eMMC when the vehicle comes back.
Bench interfaceLogger in the field, interface on the bench
The same device streams CAN live over USB as a J2534 pass-thru, into SavvyCAN or your own application via REXLIBRARY.
Not sure what you need?
Whether you need a single CAN bus data logger for bench testing or a fleet-scale deployment with cloud connectivity, our engineering team can help you find the right approach.
Documentation
Set it up and start logging
Step by step guides on the Influx Technology docs, from first connection to pinouts and the full manual.
Specifications
The full picture
Sourced from the REXGEN 1 technical documentation at docs.influxtechnology.com.
Download spec sheet ↓Bus interface
CAN channels
1× CAN (ISO 11898-1, up to 1 Mbit/s)
CAN protocol
CAN 2.0 part A and B; ISO 11898-2:2016 and ISO 11898-5:2007 physical layer
Max messages
20000 mps
Protocols
Raw CAN, SAE J1939
Connector
1× 9-pin D-Sub, 1 status LED
Bus protection
±58 V bus fault protection, thermal shutdown, under-voltage protection
Data capture
Triggering
Trigger on a CAN ID, a parameter value or a DM1 counter
Filtering
Advanced message filtering on configurable channels
Modes
Cyclic logging, silent mode, CAN error logging
Live monitoring
Live CAN trace of raw CAN signals and SAE J1939
Real-time clock
Onboard RTC timestamps every frame
Storage and power
Storage
8 GB soldered eMMC, FIFO logic once full
File system
FAT32, log files accessed via REXDESK
Supply (OBD)
+5 V to +27 V
Supply (USB)
+4.5 V to +5.5 V
Power (logging)
87 mA at 12 V
Power (sleep / deep)
<17 mA / <2 mA
Wake
WakeOnCAN, power-down and sleep modes
Interface
PC interface
Rugged micro USB 2.0, datalogger mode and J2534
Pass-thru
Functions as a J2534 CAN interface for real-time USB streaming
Environmental and physical
Operating temperature
-40 C to +85 C, humidity max 90%
IP rating
IP65
Enclosure
PC+ABS, four mounting holes and screws
Dimensions / weight
100 x 73.5 x 27.4 mm, 164 g
Software and security
Included software
REXDESK (free), XML-based configuration with schema
Toolkit
REXLIBRARY open libraries for logger management and data conversion
Export formats
ASAM MDF (.mf4), CSV, MATLAB, ASC, BLF, TRC, RXD
Firmware
Free firmware updates for adding features
Security
RSA device locking; AES log encryption available as a licensed feature on request
Origin
Designed and tested in the United Kingdom
Ordering
SKU
INF2109.01, 8 GB hardware version
In the box
REXGEN 1, REXDESK, micro USB cable, 12 months SLA
Price
From £449
Data logger
Share config

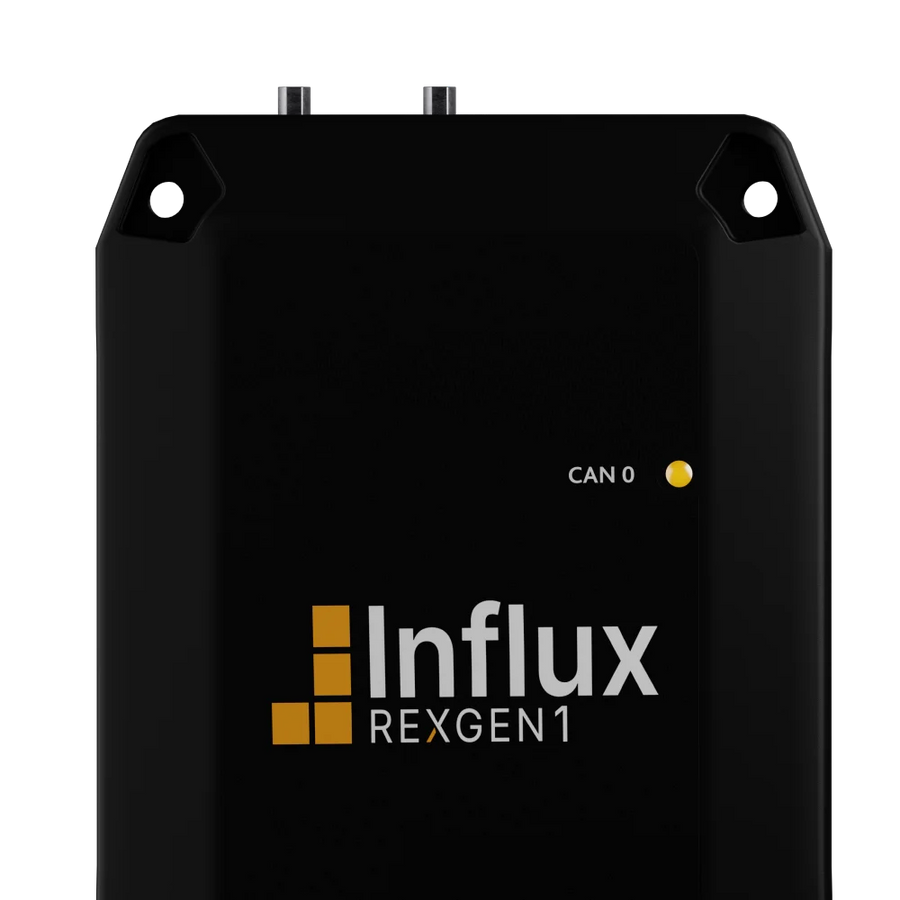

REXGEN 1 configurator
Compact single-channel CAN 2.0 data logger recording to 8GB eMMC. Wakes on bus activity, streams live over USB and converts free with REXDESK.
In the box:
- REXGEN 1 logger (INF2109)
- REXDESK software (INF1601)
- Micro USB cable (INF4300)
- 12 months SLA (INF6102)
Storage
Version
£449.00
Request a quote
Frequently asked questions
Common questions
Is REXGEN 1 a vehicle black box?
It works exactly like one. It records the CAN bus continuously to soldered eMMC with nothing to eject or lose, FIFO logic keeps the most recent history once the 8 GB is full, and deep sleep at under 2 mA means it can stay fitted for the life of the vehicle.
Does REXGEN 1 support CAN FD?
No. REXGEN 1 records classic CAN (2.0 A and B) up to 1 Mbit/s. If you need CAN FD, a second channel or a LIN bus, REXGEN 2 is the right device.
What happens when the 8 GB eMMC is full?
FIFO logic overwrites the oldest file first, so logging never stops and the most recent data is always preserved. Cyclic logging mode is also supported.
Can it work as a live CAN interface?
Yes. REXGEN 1 functions as a J2534 pass-thru device over its micro USB 2.0 port, streaming CAN in real time to diagnostic tools and applications such as SavvyCAN.
Will it drain the vehicle battery?
No. Deep sleep draws under 2 mA and normal sleep under 17 mA, with WakeOnCAN bringing it back the moment the bus becomes active. In normal logging it draws 87 mA at 12 V.
What is the difference between REXGEN 1 and REXGEN 2?
REXGEN 1 has a single classic CAN channel and 8 GB of storage. REXGEN 2 adds a second channel, CAN FD up to 8 Mbit/s, a LIN bus, two digital and two analogue inputs and up to 16 GB of storage.
