Black-box event evidence on heavy mining equipment, with motion and position context as standard. Built around REXGEN 2 in its IMU configuration, combining CAN FD logging, a 6-axis IMU and 18 Hz GNSS in one rugged device built for haul roads, open-pit operations and underground deployment.
Recommended product

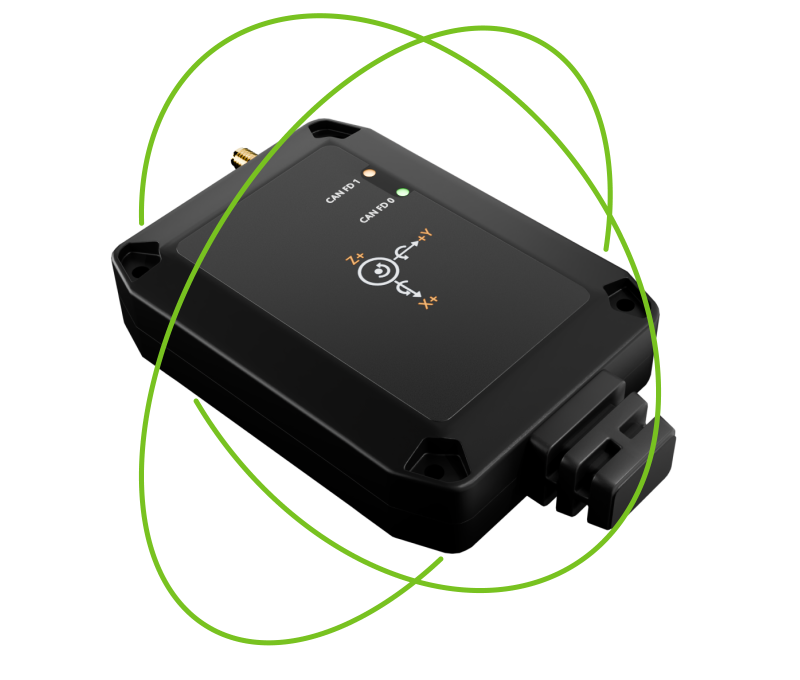

Mining haul trucks need more than a CAN recorder. They need the loaded leg, the dump, the empty return and the brake events on the same timeline as engine and transmission data. REXGEN 2 in its IMU configuration is built for that job: 2x CAN FD logging combined with a 6-axis IMU and 18 Hz GNSS in one rugged enclosure.
6-axis IMU and 18 Hz GNSS integrated alongside 2x CAN FD at up to 8 Mbit/s. Haul cycle, brake events and impacts log alongside engine and transmission CAN traffic on the same trace.
Pre and post-event recording with configurable triggers. Capture context around J1939 DM1 fault codes, brake events, impact thresholds or operator-initiated markers.
IP65 sealed, -40C to +85C operating range. Non-removable eMMC up to 16 GB eliminates the SD card vibration failures that plague heavy equipment deployments.
WakeOnMovement, WakeOnCAN and WakeOnDigitalInputs for deployment on equipment an engineer rarely accesses. Power-safe writes mean zero message loss on bad shutdowns.
The challenge
Mining vehicles operate in some of the harshest conditions for electronic measurement equipment.
Warranty claims and incident investigations on heavy equipment depend on understanding what the machine was doing, where it was and what happened in the seconds before the event. CAN traffic alone misses half the story.
Haul trucks, loaders and drilling equipment generate sustained vibration that destroys SD cards and loosens connections. Ambient temperatures range from below -40C on surface to above +60C deep underground.
Physical access to mining equipment is restricted by safety protocols and operational schedules. Equipment that needs manual data retrieval or on-vehicle configuration creates costly downtime.
Applications
From haul truck black-box logging to fleet condition monitoring with thermal and vibration instrumentation, mining data acquisition spans several distinct workflows.

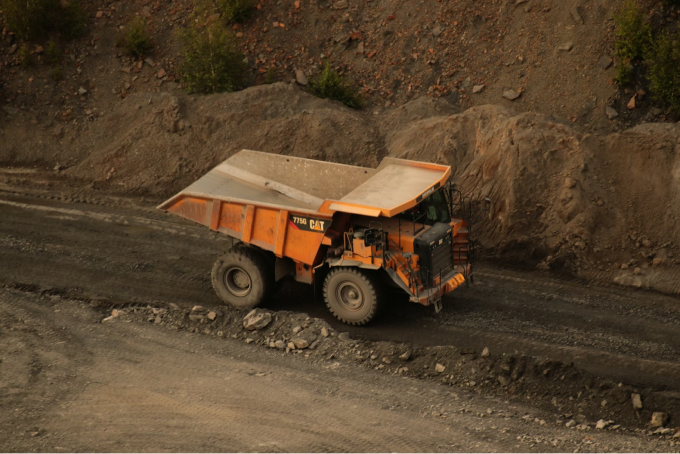

REXGEN 2 in its IMU configuration captures 2x CAN FD traffic alongside 6-axis IMU and 18 Hz GNSS data. Pre and post-event capture around J1939 DM1 faults, brake events or impact thresholds for warranty and incident investigation.

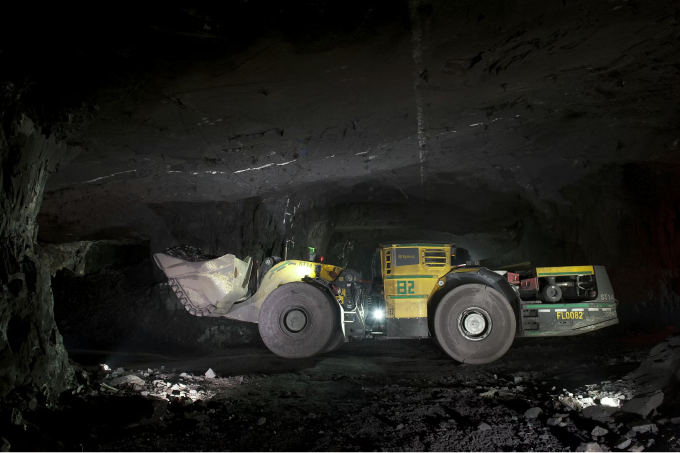

REXGEN 1 covers single-CAN black-box recording on older or less complex mining equipment where multi-bus, motion and GNSS are not required. The entry rung of our evidence ladder.

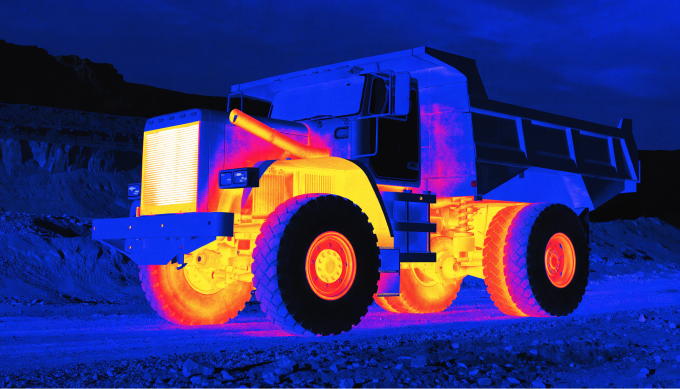

REXGEN Air for fleet-wide cloud upload across mining vehicles. Pair with K-TC thermocouples for engine bay, brake pad and exhaust manifold thermal monitoring. K-TC outputs CAN messages that REXGEN Air records alongside J1939 chassis traffic on the same time base.
Recommended hardware
REXGEN 2 in its IMU configuration is the recommended starting point. REXGEN 1 covers entry-level single-CAN evidence. REXGEN Air covers fleet streaming with LTE. K-TC adds CAN-output thermocouple measurement for engine and brake thermal monitoring.

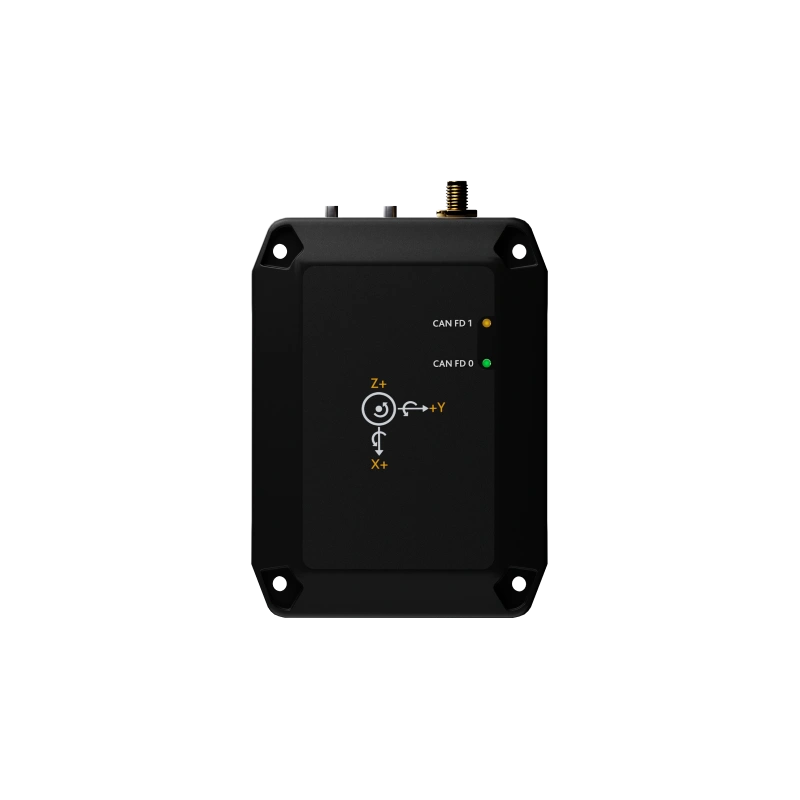

2x CAN FD at up to 8 Mbit/s with optional integrated 6-axis IMU and 18 Hz GNSS. Pre and post-event capture, configurable triggers, WakeOnMovement, WakeOnCAN. IP65 sealed, -40C to +85C operating range. The IMU configuration is the recommended build for haul-cycle black-box logging on heavy mining equipment.
Entry-level single-CAN black-box for older or simpler mining equipment. The starting rung of the evidence ladder where multi-bus, motion and GNSS are not required.
Permanent install with LTE CAT 1 or CAT 4 upload for mining fleets that need data off the asset without manual retrieval. Up to 4x...
CAN-output K-type thermocouple module for engine bay, brake and exhaust thermal monitoring on mining vehicles. Up to 32 channels, K, J and T thermocouple types,...
Our applications engineers help mining OEMs and operators specify logger configurations for surface and underground operations, including connectivity planning and data workflow design.
What engineers say
We have used several suits of REBEL LT with K-BOX together for several years to obtain CCP, CAN messages and sensor data including pressure and temperature measurements. The whole system is very robust and stable for getting what we need by such a cost-effective system. Now we could hardly take the system off the vehicle as we could not do the vehicle test without it.
The REBEL LT device is very easy to use and is dependable. I have used it for the last four years, and its performance has been consistent. Flawless and sturdy.
Software ecosystem
REXGEN 2 ships with REXDESK for logger configuration, IMU and GNSS setup, DBC and CAN database import and haul-cycle trace analysis. K-TC pairs with K-CAL for thermocouple calibration with live oscilloscope view. Every Influx Technology data logger and instrumentation module ships with free companion software. No licence fees, no per-seat charges, no annual renewals.
Explore REXDESKLogger configuration, IMU and GNSS setup, haul-cycle and event trace analysis
REBEL configuration, XCP/CCP setup, CAN and LIN trace analysis
Thermocouple and sensor calibration with live oscilloscope view
Diagnostics and firmware updates for K-Series modules
Why Influx Technology
Built, tested and supported from one site at the heart of UK automotive testing.
Our UK headquarters sit within one of Europe's leading vehicle test facilities. We develop and validate hardware in real test conditions.
Your enquiry is handled by the engineers who designed the hardware. No reseller layer, no third-party support desk.
Hardware design, firmware, desktop software and cloud platform all developed in-house. No third-party dependencies in the signal chain.
REXDESK, K-CAL and DIALOG are free with every hardware purchase. No per-seat charges, no annual renewals.
Frequently asked questions
REXGEN 2 in its IMU configuration combines 2x CAN FD logging at up to 8 Mbit/s, a 6-axis IMU and 18 Hz GNSS in one rugged device. The haul cycle (loaded leg, dump, empty return) and the engine and transmission CAN traffic log to the same trace, with pre and post-event capture around J1939 DM1 faults or impact thresholds. One device covers what would otherwise need separate motion and CAN data loggers.
REXGEN 2 is available in two configurations on one product page: the base CAN FD logger and the IMU build with integrated 6-axis IMU and 18 Hz GNSS. For mining haul-cycle and event evidence work, the IMU build is the recommended configuration. For diagnostic-only deployments without motion or position requirements, the base configuration is available at a lower price point.
REXGEN 1, REXGEN 2 and REXGEN Air are rated IP65 (dust-tight and protected against water jets) and operate from -40C to +85C. The non-removable eMMC storage eliminates the SD card vibration failures common in heavy equipment deployments. Power-safe writes mean zero message loss on bad shutdowns.
REXGEN 1 and REXGEN 2 log to non-removable eMMC for retrieval at the surface or on a maintenance cycle. Where cloud upload is required, REXGEN Air buffers J1939 and CAN data on eMMC and uploads automatically via FTP, FTPS, S3 or HTTPS when the vehicle surfaces or reaches a WiFi access point. GNSS dead reckoning keeps the position trace continuous through underground operations.
Yes. All REXGEN loggers support J1939 DM1 fault monitoring with configurable triggers. DM1 counter triggers can start recording around fault events for investigation. REXGEN Air adds a snapshot service that periodically sends decoded J1939 signals to your server for trend monitoring across the fleet.
The K-TC module is a CAN-output K-type thermocouple system designed for high-temperature monitoring on mining equipment. Up to 32 thermocouple channels with plus or minus 1C accuracy and isolation rated to 780V on the CAN bus. K-TC outputs CAN messages that REXGEN loggers record alongside vehicle CAN traffic. Common deployments cover engine bay, exhaust manifold, brake pad and transmission temperatures.
Describe the equipment, the operating environment and the data you need to capture. Our applications engineers will scope a logger and instrumentation configuration for surface or underground operations.
