Modern EV development runs on CAN FD and thermal instrumentation. Built around REXGEN 2 for BMS and motor controller traffic at up to 8 Mbit/s. Paired with K-TC thermocouple modules with functional galvanic isolation (see the K-TC specification) for cell, busbar and pack-level thermal monitoring.
Recommended product
Two CAN FD channels at up to 8 Mbit/s for BMS and motor controller traffic, paired with K-TC thermocouple modules with functional galvanic isolation (see the K-TC specification). Built for modern EV battery, powertrain and full-vehicle integration work where high-voltage systems are present at the measurement point.
Two CAN FD channels handle modern BMS and motor controller traffic without dropped frames. Built for the high-bandwidth cell voltage, balancing and temperature reporting that legacy CAN 2.0 cannot capture.
K-TC thermocouple modules with functional galvanic isolation (see the K-TC specification).
Add REBEL CT alongside REXGEN 2 where the test programme also covers LIN body networks or needs more buses on one clock. REBEL CT provides two CAN 2.0, two CAN FD and two LIN buses, with 4 analogue inputs for supplementary signal capture.
-40C to +85C operating range. Survives the bench, the climate chamber, the test vehicle and the validation cell. Non-removable eMMC with 100% power-safe logging eliminates SD card thermal failure modes that plague long-duration battery durability runs.
The challenge
Electric vehicle development has measurement requirements that legacy automotive instrumentation was not built for.

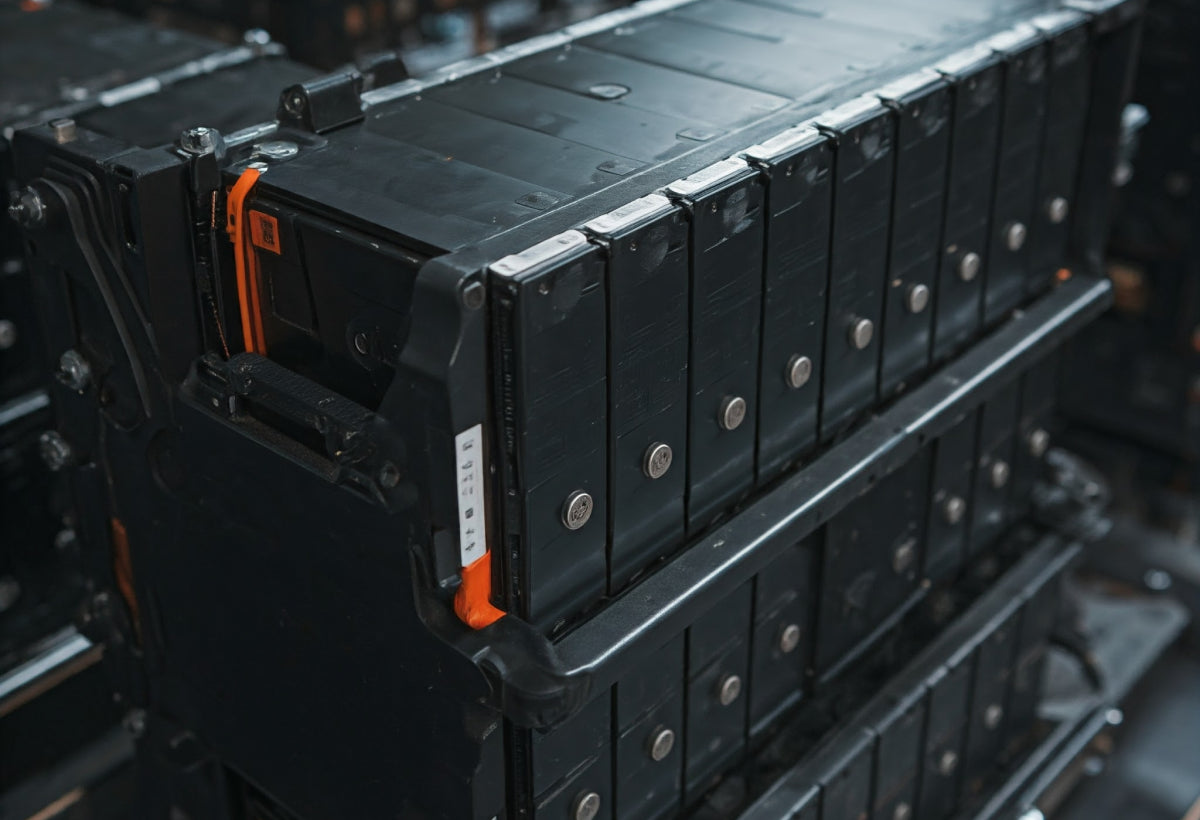

Battery pack development requires thermocouple measurement near cells at hundreds of volts (typically 400V to 800V). Standard non-isolated instrumentation can short across cells or expose the engineer to hazardous voltage paths.
Modern BMS implementations push cell voltage, balancing and temperature reporting onto CAN FD at multi-megabit rates. CAN 2.0 only loggers cannot capture this traffic. Logger choice is gated by CAN FD support.
Cell ageing, thermal cycling, fast-charge and durability programmes run continuously over weeks and months. Loggers need power-safe writes and storage that does not corrupt on a single bad shutdown or thermal event during a long cell-life programme.
Applications
Battery development, motor controller calibration and full-vehicle integration all draw on the same hardware platform with different sensor configurations.
REXGEN 2 captures CAN FD BMS traffic at up to 8 Mbit/s, including cell voltage, balancing, temperature and state-of-charge reporting. K-TC adds K-type thermocouple measurement for fast-charge studies and cell durability programmes.
Pair REXGEN 2 with REBEL CT where chassis and body networks are in the test plan. REBEL CT brings two CAN 2.0, two CAN FD and two LIN buses, with native XCP, CCP and UDS support and 4 analogue inputs for supplementary signal capture.
REXGEN Air for permanent install on EV validation fleets and pilot programmes. Non-removable eMMC up to 32 GB with 100% power-safe logging captures the full battery life cycle. Has been deployed for battery supplier warranty monitoring across operational fleets.
Recommended hardware
REXGEN 2 is the recommended starting point for EV bench and vehicle work. K-TC is the critical instrumentation pairing for high-voltage thermal measurement on cells, busbars and pack assemblies. REBEL CT adds two CAN 2.0, two CAN FD and two LIN buses for chassis-side EV development work. REXGEN Pro adds on-vehicle edge compute for battery passport, driver style scoring and OTA application updates.
2x CAN FD at up to 8 Mbit/s plus LIN. 8 GB or 16 GB eMMC with 100% power-safe logging. Optional integrated 6-axis IMU and 18 Hz GNSS in the IMU configuration. IP65 sealed, -40C to +85C operating range. Pre and post-event capture for fault investigation. Designed for the EV bench, climate chamber and test vehicle alike.
CAN-output K-type thermocouple module with functional galvanic isolation (see the K-TC specification). Up to 32 channels, K, J and T thermocouple types, plus or minus...
Two CAN 2.0, two CAN FD and two LIN buses for EV chassis-side development. Native XCP on CAN, CCP, UDS (ISO 14229), OBD and SAE...
Edge platform for EV battery passport, driver style scoring for range optimisation, OTA module updates and on-vehicle diagnostics. Deterministic CAN FD capture underneath, vehicle applications...
Our applications engineers work with EV battery teams, powertrain integrators and vehicle dynamics groups. Describe your test phase and signal requirements.
What engineers say
For our research on real driving emissions (RDE) of low-carbon fuels, we use two vehicles: an EURO 6c compliant diesel hybrid (Mercedes C300h) and an EURO 5 gasoline hybrid (Toyota Prius). We require data on various parameters like engine speed, fuel consumption, battery charge, and exhaust temperatures. Our current data loggers couldn't capture all parameters for the Mercedes via the OBD port. Influx Technology intervened, scanning the vehicle to create a custom data logger, enabling us to measure essential parameters for emissions research alongside driving and engine data.
We have taken logs just using the USB power and I'm quite happy that the temperature measurement is comparable to the kit we're using currently, within 1°C
Software ecosystem
REXGEN 2 ships with REXDESK for CAN FD configuration, DBC import and BMS or motor controller trace analysis. K-TC pairs with K-CAL for thermocouple calibration with a live oscilloscope view. Every Influx Technology data logger and instrumentation module ships with free companion software. No licence fees, no per-seat charges, no annual subscription costs.
Explore REXDESKCAN FD configuration, DBC import, BMS and motor controller trace analysis
REBEL configuration, XCP/CCP setup, CAN and LIN trace analysis
Thermocouple and sensor calibration with live oscilloscope view
Diagnostics and firmware updates for K-Series modules
Why Influx Technology
Designed, built and supported from one site in Bedfordshire.
Designed, built and supported from our Bedfordshire headquarters by the engineers who answer your enquiry.
Your enquiry is handled by the engineers who designed the hardware. No reseller layer, no third-party support desk.
Hardware design, firmware, desktop software and cloud platform all developed in-house. No third-party dependencies in the signal chain.
REXDESK, K-CAL and DIALOG are free with every hardware purchase. No per-seat charges, no annual renewals.
Frequently asked questions
Yes. REXGEN 2 supports CAN FD at up to 8 Mbit/s, which is used by most modern BMS implementations for high-bandwidth cell voltage, balancing and temperature reporting. Two independent CAN FD channels allow simultaneous logging of BMS and motor controller buses on the same time base.
K-TC provides functional galvanic isolation with four separate barriers: CAN interface (780 V peak test), USB interface (840 V peak test), power stage (560 V peak test) and bank-to-bank isolation between thermocouple boards. Thermocouple inputs are grouped in banks of 8 and channels within a bank share one electrical domain, so probes in one bank must never sit at different potentials. Maximum applied voltage on any thermocouple input is 3.3 V. Functional isolation protects signals and equipment. It is not a personnel protection barrier: K-TC must not be connected to voltage class B (HV) circuits and probes must be electrically insulated from HV potential.
REXGEN Air provides non-removable eMMC storage up to 32 GB with 100% power-safe logging, ensuring zero message loss throughout the vehicle lifetime. Data uploads automatically via LTE when connectivity is available. This configuration has been deployed for battery supplier warranty monitoring programmes across operational EV fleets.
Yes. REBEL CT CAN FD logs two CAN FD buses in ISO and non-ISO standard frames alongside two CAN 2.0 buses and two LIN channels, so EV BMS and motor controller traffic lands on the same timeline as the rest of the vehicle.
REXGEN 2 is the compact sealed logger for BMS and motor controller work: 2 CAN FD channels at up to 8 Mbit/s, IP65 sealed, climate-chamber ready. REBEL CT is the multi-bus chassis logger for full-vehicle integration: two CAN 2.0, two CAN FD and two LIN channels, with native XCP, CCP and UDS support and a CAN 2.0 gateway whilst logging. Many EV programmes use both: REXGEN 2 for the battery and motor controller side, REBEL CT for the chassis side.
REXGEN Pro is the edge platform in the Influx Technology range: deterministic CAN FD capture underneath, on-vehicle applications above. For EV development, REXGEN Pro fits OEMs running programme-grade edge platforms: battery passport (a regulatory requirement coming into force in the EU), driver style scoring for range optimisation, OTA module updates and on-vehicle diagnostics. REXGEN 2 handles capture-and-stream. REXGEN Pro handles capture-and-compute. The two are commonly deployed together on the same EV programme for different jobs. REXGEN Pro is enquiry-only, so discuss your application with our engineering team.
Describe the vehicle or battery test setup, the networks in scope and the thermal and analog measurement points. Our applications engineers will scope the right logger and instrumentation configuration.
