Products

Find the right logger, then add the channels you need.

Ten products, three jobs: log vehicle networks, put sensors on the bus, collect data from a fleet. Answer two questions or browse the range below.

Help me choose

Two questions, under a minute
01What do you need to do?
Pick one tile in each step.Or browse all products

Data loggers 7

Standalone recorders for CAN, CAN FD and LIN. Every one writes open MDF4 files you can read in REXDESK or your own tools.

Compare data loggers
Data logger
REXGEN 1

REXGEN 1

The essential standalone CAN logger.

  • 1× CAN 2.0
  • 8 GB onboard
  • USB, J2534 pass-through
  • IP65
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REXGEN 1Key specs
CAN channels
1× CAN 2.0A/B
Storage
8 GB eMMC
PC connection
Micro USB 2.0, J2534 pass-through
Power
Wake-On-CAN, deep sleep under 2 mA
Operating temperature
-40 to +85 °C
Connector
D-Sub 9
Enclosure
IP65
SKU
INF2109.01
Download full spec sheet All specifications on the product page
Data logger
REXGEN 2

Log CAN and CAN FD in the vehicle.

  • 2× CAN FD, 1× LIN
  • 2 analogue, 2 digital inputs
  • USB, J2534 pass-through
  • 16 GB onboard
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REXGEN 2Key specs
CAN channels
2× CAN 2.0 or CAN FD
LIN
1×
Inputs
2 analogue, 2 digital
Storage
16 GB
GNSS and motion
On REXGEN 2 IMU GNSS
PC connection
Micro USB 2.0, J2534 pass-through
Power
Wake-On-CAN, silent mode
Connector
2× D-Sub 9
SKU
INF2110
Download full spec sheet All specifications on the product page
Data logger
REXGEN 2 IMU GNSS

Log CAN and CAN FD in the vehicle, with motion and position.

  • 2× CAN FD, 1× LIN
  • 72-channel GNSS, up to 18 Hz
  • 6-axis IMU, 1 kHz sampling
  • 16 or 32 GB onboard
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REXGEN 2 IMU GNSSKey specs
CAN channels
2× CAN 2.0 or CAN FD
LIN
1×
Inputs
2 analogue, 2 digital
GNSS
u-blox, 72-channel, up to 18 Hz
Motion
6-axis IMU, 1 kHz, ±4 / 8 / 16 g
Storage
16 or 32 GB
PC connection
Micro USB 2.0, J2534 pass-through
Power
Wake-On-CAN, movement wake, silent mode
Connector
2× D-Sub 9, SMA antenna
SKU
INF2112
Download full spec sheet All specifications on the product page
Data logger
REXGEN Air

Send fleet data to the cloud.

  • 2 or 4× CAN FD, 1× LIN
  • LTE upload to the cloud
  • GNSS and 6-axis IMU included
  • 8 to 32 GB onboard
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REXGEN AirKey specs
CAN channels
2× or 4× CAN 2.0 or CAN FD
LIN
1×
Cellular
LTE Cat 1, multi-band
GNSS
u-blox 30 Hz, 72-channel
Motion
6-axis, accelerometer and gyroscope
Storage
8, 16 or 32 GB eMMC
Digital I/O
2× I/O and relay driver
Power
Wake-On-CAN, Wake-On-Movement
Connector
Molex Mini50 24-pin
SKU
INF2116
Download full spec sheet All specifications on the product page
Data logger
REXGEN Pro

REXGEN Pro

Log, compute and gateway at the edge.

  • Up to 4× CAN FD, 1× LIN
  • LTE and Wi-Fi
  • Edge compute and gateway
  • IP65 aluminium
Via CAS DataLoggers View product Built to order Spec sheet (PDF)
REXGEN ProKey specs
CAN channels
Up to 4× CAN 2.0 or CAN FD
LIN
1×
Cellular
LTE Cat 4
Wi-Fi
802.11 b/g/n
GNSS
Multi-constellation
Motion
6-axis, up to 1 kHz
Storage
32 GB eMMC
Diagnostics
UDS and XCP
Security
UNECE R155-aligned
Enclosure
IP65 aluminium
SKU
INF2118
Download full spec sheet All specifications on the product page
Data logger
REBEL CT

REBEL CT

Multi-network logging with sensor inputs.

  • 2× CAN 2.0, 2× CAN FD, 2× LIN
  • 4 analogue inputs, 3 digital I/O
  • XCP, CCP, UDS
  • IP65 aluminium
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REBEL CTKey specs
CAN channels
2× CAN 2.0 and 2× CAN FD
LIN
2×
Analogue inputs
4×
Digital I/O
3×
Storage
SD card, removable
Protocols
XCP, CCP, UDS, OBD, J1939
Cellular
Optional, configured at order
PC connection
Isolated USB Type B
Connector
D-Sub 25
SKU
INF2105.01P
Download full spec sheet All specifications on the product page
Data logger
REBEL LT

REBEL LT

Diagnostics and logging on one timebase.

  • 2× CAN 2.0, 1× K-Line
  • 4 analogue inputs, digital I/O
  • UDS requests in the file
  • 32 GB SD card
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
REBEL LTKey specs
CAN channels
2× CAN 2.0
K-Line
1×, no LIN
Analogue inputs
4×
Digital I/O
3×
Storage
32 GB SDHC card, removable
Protocols
UDS, OBD, K-Line
PC connection
Isolated USB Type B
Connector
D-Sub 25
Enclosure
IP20
SKU
INF2101
Download full spec sheet All specifications on the product page

Nothing in this family matches those filters. Clear a filter, or ask an engineer.

Instrumentation 3

Modules that put thermocouples, voltages and mixed signals onto the CAN bus, so any logger records them on the same timebase.

Compare instrumentation
Instrumentation
K-TC

Put thermocouples on the CAN bus.

  • 8, 16 or 32 thermocouples
  • 0.001 °C resolution
  • CAN output, read by any logger
  • IP65
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
K-TCKey specs
Channels
8, 16 or 32 thermocouple
Resolution
0.001 °C
Output
CAN 2.0
Logging
Any CAN logger, or onboard via K-Log
Set-up
K-CAL, DBC export
Enclosure
IP65, stackable
SKU
INF2204.02P, INF2205P, INF2206P
Download full spec sheet All specifications on the product page
Instrumentation

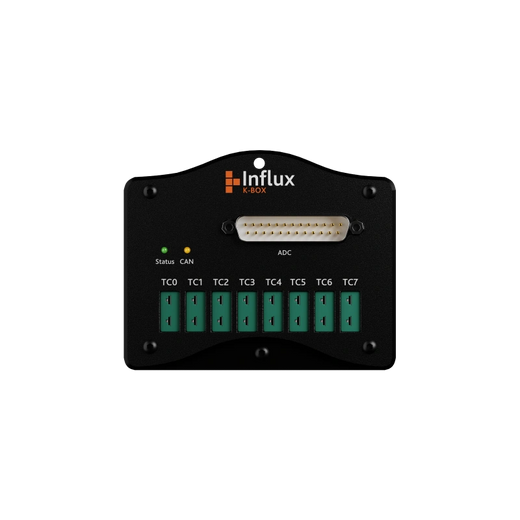

K-BOX

K-BOX

Mixed signals, one CAN module.

  • Analogue, thermocouple J K T, digital
  • 8 channels at 1 kHz to 2 at 10 kHz
  • CAN output, read by any logger
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
K-BOXKey specs
Analogue inputs
8, differential
Thermocouple
J, K and T type
Digital inputs
Yes
Sample rate
Up to 10 kHz, channels trade for rate
Output
CAN 2.0
Set-up
K-CAL, DBC export
Enclosure
Stackable
SKU
INF2201P
Download full spec sheet All specifications on the product page
Instrumentation
K-AN8

K-AN8

Analogue inputs and switched outputs on the bus.

  • 8 analogue inputs, 10 kHz
  • Outputs that switch relays and indicators
  • Frequency and pulse inputs
  • CAN output, read by any logger
Via CAS DataLoggers View product Ask about lead time Spec sheet (PDF)
K-AN8Key specs
Analogue inputs
8
Sample rate
10 kHz
Outputs
Open collector, 45 V 10 mA
Pulse inputs
3, frequency and counter
Output
CAN 2.0
Set-up
K-CAL, DBC export
Enclosure
Stackable
SKU
INF2210P
Download full spec sheet All specifications on the product page

Nothing in this family matches those filters. Clear a filter, or ask an engineer.

Software 3

Configure, calibrate and analyse. Each tool pairs with a hardware family.

All software
Software

REXDESK

Configure REXGEN loggers and analyse the files.

  • Configures REXGEN 1, 2, Air and Pro
  • Opens MDF4, exports CSV and MAT
  • Live and offline analysis
Free with REXGEN Learn more
Software

K-CAL

Set up and calibrate K-Series modules.

  • K-TC, K-BOX and K-AN8
  • Oscilloscope view and calibration
  • DBC export for any logger
Free with K-Series Learn more
Software

DIALOG

Configure REBEL loggers and process the data.

  • REBEL CT and LT
  • Trace and graph analysis
  • Standard and Plus add batch processing
Free Configurator tier Learn more

Nothing in this family matches those filters. Clear a filter, or ask an engineer.

  • Designed and tested in the UKEngineering and support in Bedfordshire, Bulgaria, China and India.
  • 12 month warrantyOn all Influx Technology hardware.
  • Faulty items replaced within 30 daysRefund or replacement, return shipping covered.

Orders over 5 units are quoted individually.

Why Influx Technology

What sets us apart

Designed, tested and supported by our global team.

Engineered in the UK

Designed, built and supported from our Bedfordshire headquarters by the engineers who answer your enquiry.

Direct engineering support

Your enquiry is handled by the engineers who designed the hardware. No reseller layer, no third-party support desk.

Full-stack control

Hardware design, firmware, desktop software and cloud platform all developed in-house. No third-party dependencies in the signal chain.

Free software, no licence fees

REXDESK, K-CAL and DIALOG are free with every hardware purchase. No per-seat charges, no annual renewals.

Talk to us

Not sure which hardware fits the job?

Tell us about the vehicle, the networks and the signals you need. An engineer will scope the right setup with you.

Speak to an engineer Compare data loggers
