When data is critical and messages
can't be missed...

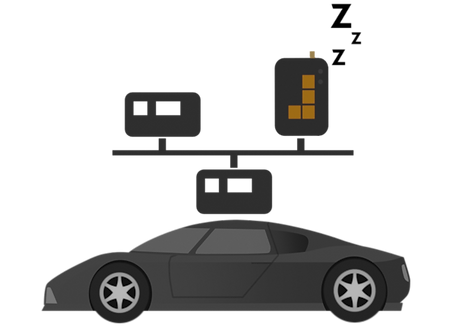

We recognise the importance of data security and every detail of the ReXgen has been considered to ensure our product can be trusted in CAN networks.
One interface:
■ Free drag 'n' drop configurator tool ReXdesk
■ Sleep mode with wake on CAN, no battery drain!
■ Create configurable triggers from DBC file, using ReXdesk
■ Real-time clock to timestamp data for analysis
■ Supports J2534 (Pass-thru)
■ Log CAN data continuously for hours unattended
Easy configuration :
Connect the ‘ReXgen 2’ to your computer and configure the device to work with your vehicle using the included configuration tool ReXdesk, or configure it using your custom applications with our open API.
Construction & Design:
Robust, stainless steel mounting screws withstand the toughest conditions. Secure the ReXgen and get ready to log /view live data.
Internal Storage to keep your data intact:
Inbuilt eMMC storage, that can be processed by custom-made algorithms, providing important alerts and statistics.
One interface:
■ Connect the 'ReXgen 2' to a computer and configure the device to work with your vehicle; it supports CAN, J1939 and error logging
■ Create easily customised programs for your communication needs with the Pass-Thru (J2534) and connect by using USB 2.0 interface
■ Compatible with third-party tools like SavvyCAN
Applications
Rare event capture:
Record important events based on real-time, such as :
CAN ID: Log data from the specific/ defined ids. Create conditions based on CAN ids.
J1939 DM1 Counter: Count the faults in the j1939 DM1 messages.
LEDs indicate when the trigger is active.
External digital switches
Pre-trigger timer

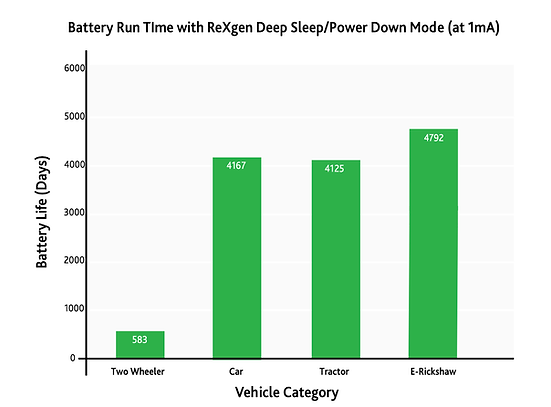

Sleep Mode to save vehicle battery
The ReXgen series includes
Power Down Mode: Deep Sleep Mode when no activity detected.
Wake-On-CAN: Wake up instantly with CAN activity.
Wake-On-Alarm: Wake up the logger when specified
Wake-On-Digital-inputs: Wake up on ignition, KL15, external switch etc.
Wake-On-Movement: Wake up on physical movement, e.g. impact or detecting movement in the vehicle. (ReXgen 2 IMU and ReXgen Air)
Pro-Spec data loggers: No messages missed
Zero data loss: Capture rare, single and multiple events
Critical data: Essential for project management
Quick change of state: Ready for data capture
Supports Interface J2534 (pass-thru)
The ReXgen Series: Active data logging with an interface that supports pass-thru. Analyse your vehicle's CAN data directly on a laptop with the ability to access remote data collection.
-
What are the supported data formats?CSV, MF4, MAT, ASC, blf
-
CAN we monitor live data?Yes, options for Live trace are available.
-
Is it possible to have 4 channels CAN FD?Yes, there are separate products supporting that function.
-
What are the main features available with ReXdesk?CAN live view, filter, trigger, sleep modes, DBC option.
-
Why is ReXgen not getting interfaced with the RexDesk?Please ensure that you have installed the driver. If not, you can find it under the Influx technology folder under the start menu
-
What happens if the logger storage gets full?The logger can continue logging after deleting the first file on a FIFO basis or can stop logging and be configured via ReXdesk, which has the option to format the logger. (FIFO is enabled by default.)
-
Is it possible to interface ReXgen 2 with KBOX?Yes, It will work with Kbox, but you will need to power the KBox from a separate power source since ReXgen doesn’t have Auxilary Power Out
-
Where can I find the Pinout details for ReXgen 2?You can find that under the help section in the ReXdesk software
-
Where can I get the Driver installation process?It is available under the Influx Technology folder in the Start menu. If it is not available there, then please install it from the Influx Technology support page. https://www.influxtechnology.com/support
-
What is the current consumption of ReXgen 2?<87mA in full operation and <2mA when CAN is not active
-
How to get real-time physical data?ReXgen doesn't provide real-time physical data, the user will have to retrieve the data log and post-process using a DBC file to view the physical data
-
Where can I find the Pinout details for ReXgen 2 IMU?You can find that under the help section in the ReXdesk software
-
What is the GNSS accuracy for ReXgen 2 IMU?2.5m CEP
-
What is the current consumption of ReXgen 2 IMU?<87mA in full operation and <2mA when CAN is not active
-
What happens if the logger storage gets full?The logger can continue logging after deleting the first file on a FIFO basis or can stop logging and be configured via ReXdesk, which has the option to format the logger. (FIFO is enabled by default.)
-
Is it possible to interface ReXgen 2 IMU with KBOX?Yes, It will work with Kbox, but you will need to power the KBox from a separate power source since ReXgen doesn’t have Auxilary Power Out
-
Are there any other connectors available apart from DB9?No, But modifications can be done for bulk orders on demand.
-
Where can I get the Driver installation process?It is available under the Influx Technology folder in the Start menu. If it is not available there, then please install it from the Influx Technology support page. https://www.influxtechnology.com/support
-
How to get real-time physical dataUser needs to use the DBC file, and post-collection, it can be exported as CSV
-
Does the ReXgen logger LEDs indicate the status of GNSS loggingNo. It is advised to wait 2 Mins before starting your trial, to a minimum number of 4 satellites.
-
Why does it support only DBC?The logger is only capable of logging CAN signal.
-
Is it possible to see a live trace with ReXgen 2 IMU?Yes
-
Where can I find the Pinout details for ReXgen Air?
-
What is the current consuption of ReXgen Air?<300mA in full operation and <2mA when CAN is not active
-
What happens if the logger storage gets full?The logger can continue logging after deleting the first file on a FIFO basis or can stop logging and be configured via ReXdesk, which has the option to format the logger. (FIFO is enabled by default.)
-
Can we interface ReXgen with KBOX?Yes, It will work with Kbox, but you will need to power the KBox from a separate power source since ReXgen doesn’t have Auxilary Power Out
-
Where can I get the Driver installer?It is available under the Influx Technology folder in the Start menu. If it is not available there, then please install it from the Influx Technology support page. https://www.influxtechnology.com/support
-
How to get real-time physical data?ReXgen doesn't provide real-time physical data, the user will have to retrieve the data log and post-process using a DBC file to view the physical data
-
Why is my ReXgen AIR not uploading data to FTPS server?There could be several reasons: 1) Ensure that the SIM card is active and has sufficient data 2) Ensure that the GPRS/LTE antenna is connected to the Logger 3) Check the Server and APN settings of the logger
-
Will I be supplied a SIM cardNo SIM card will be supplied. Most standard SIMs are suitable. If in doubt please ask our support team.
-
CAN we monitor live data?Yes, options for Live trace are available.
-
Why my logger is not getting Detected?Make sure that the ReXgen Driver is installed on your computer; refer ReXgen Support page for instructions.
-
Why is ReXdesk not opening after installation?Make sure that Visual C++ Redistributable x64 is installed.
-
Why does exported CSV data have gaps in it?ReXdesk Doesn’t export data after Interpolation or Resampling; the data is recorded and timestamped as received from the CAN bus. The gaps will be due to the difference in the transmission rate of various CAN messages.
