REBEL software 4 versions / Windows

Configure, analyse, manage.

DIALOG is the companion software for REBEL data loggers. From field technician to fleet engineer, choose the version that matches your workflow.

4 software versions Free tiers available Fleet batch processing

Download DIALOG Documentation

4

Software versions

GPS

Synchronised map

XCP/CCP

ECU measurement

Fleet

Batch processing

01 Versions

Progressive feature unlocking

Feature	Remote Free	Configurator Free	Standard Paid	Plus Paid
Format SD / Set time / Reflash	✓	✓	✓	✓
Send config via SD card	✓	✓	✓	✓
Configure logger (CAN/LIN/DBC)	—	✓	✓	✓
Export to CSV / MDF / BLF / ASC	—	✓	✓	✓
DBC / ODX editor	—	✓	✓	✓
Live data viewer	—	—	✓	✓
Graphical data analysis	—	—	✓	✓
GPS map viewer (synchronised)	—	—	✓	✓
XCP / CCP ECU measurement	—	—	✓	✓
MATLAB MAT / NCode S3 export	—	—	✓	✓
FlexRay Fibex / ASAM A2L	—	—	—	✓
Batch data processing	—	—	—	✓
Data file merging	—	—	—	✓

02 Capabilities

Built for vehicle data engineers

01

Graphical data analysis

Built-in graphical viewer for CAN, LIN and analogue data with time-synchronised plots. Overlay multiple signals, zoom into events and export annotated views.

Standard +Time-syncMulti-signal

02

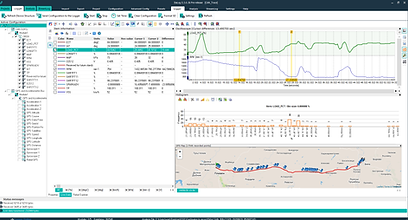

Synchronised GPS map

View logged GPS position data on an integrated map synchronised with the signal timeline. Correlate vehicle behaviour with location for route-based analysis.

Standard +KML exportIMU data

03

XCP/CCP ECU measurement

Configure REBEL loggers for XCP and CCP ECU measurement protocols. Access internal ECU parameters for powertrain development, calibration verification and emissions testing.

Standard +A2L (Plus)FlexRay (Plus)

04

Fleet batch processing

DIALOG Plus automates conversion, merging and export of large volumes of recorded data files. Built for programmes recording across whole vehicle fleets.

Plus onlyBatch exportFile merging

03 Workflow

From configuration to fleet-scale analysis

Step 01

Configure and deploy

Create a project, add CAN bus and DBC files. Configure triggers, sleep mode and analogue inputs. Send config to the REBEL via USB or SD card.

Step 02

Record and analyse

Deploy the logger. Extract the IVD file, plot signals in the graphical viewer and correlate with GPS position data.

Step 03

Export and share

Export to CSV, MDF, BLF, ASC, MAT or Excel. Use batch processing for fleet-scale conversions and data file merging.

04 Compatibility

Works with all REBEL data loggers

Supported hardware

REBEL LT
REBEL CT
REBEL Dash (display configuration)
K-Series modules (via CAN bus)

Protocols and formats

CAN DBC, LIN LDF, ODX/MDX/GDX
FlexRay Fibex, ASAM A2L (Plus)
XCP / CCP ECU measurement
Export: CSV, MDF, BLF, ASC, MAT, Excel

Supported REBEL loggers

REBEL LT

CAN bus data logger with UDS, CCP, XCP, J1939 and OBD-II support plus 4 analog inputs. Runs unattended fleet trials and diagnostics...

£1,249

View →

REBEL CT

Rugged CAN data logger with 2x CAN and 2x CAN FD channels, UDS, XCP and J1939 support. IP65 aluminium housing, SD storage...

£1,899

View →

05 FAQ

Common questions

What is the difference between Remote and Configurator?

Remote is a maintenance utility: format SD cards, set time, reflash firmware. Configurator adds full configuration capability and data export to CSV/MDF, but no graphical analysis or live viewing.

Which version do I need for data analysis?

Standard includes the graphical viewer, GPS map, live data and XCP/CCP. For fleet batch processing and data file merging, you need Plus.

Does DIALOG support FlexRay?

FlexRay Fibex and ASAM A2L support is available in Plus only.

Can I use DIALOG with REXGEN loggers?

DIALOG is designed for REBEL loggers. REXGEN data is configured and exported using REXDESK. K-Series data recorded alongside REBEL CAN data can be decoded using DBC files from K-CAL.

Can I process large numbers of files automatically?

Yes. DIALOG Plus includes batch processing for converting, merging and exporting large volumes of recorded data files.

Are the free versions time-limited?

No. Remote and Configurator are free with no time limit, trial period or feature restrictions.

What export formats does DIALOG support?

Configurator exports to CSV, Vector MDF, BLF, ASC, ASAM MDF4 and Excel. Standard adds MATLAB MAT and NCode S3. Plus adds KML for GPS data.

Download DIALOG

Remote and Configurator are free. Standard and Plus require a licence.

Windows 10/11Remote: FreeConfigurator: Free

Download free versions Quote for Standard/Plus

Need help getting started?

Documentation portal with DIALOG user guides, version comparison and REBEL logger support.

View documentation Contact support
